Read these original instructions before using your device for the first time, adhere to the instructions contained therein and store them for later reference or subsequent owners.

• Be sure to read the safety instructions no. 5.956-249.0 prior to the initial startup.

• If the operating instructions and safety instructions are not observed, the device can be damaged and dangers could arise for users and other persons.

• Notify the dealer immediately in the case of shipping damage.

Behaviour in case of filter breakage / leakage:

1. Switch off the unit immediately.

   The unit may not be operated without the fresh water filter.

2. Replace the filter.

The device is intended for:

• Vacuuming of dry, flammable, deposited dusts hazardous to health; dust class M according to EN 60335‑2‑69

• For vacuuming dusts of the dust groups IIIC, IIIB and IIIA

• Extraction of combustible dusts in zone 22

• Vacuuming of moist substances

• Use above ground

• Industrial usee.g. in storage and production areas

• Commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies.

The device’s correct function is only guaranteed when using suction hose nominal widths of DN40 and DN50.

Any other use constitutes improper use.

The device is not suitable for:

• Vacuuming of ignition sources and dusts with a glow temperature ≤ 190 °C

• Vacuuming aluminium and magnesium dusts

• vacuuming of flammable liquids (flammable, easily flammable, highly flammable according to Dangerous Substances Directive 67/548/EEC) (flash point below 55 °C) and mixtures of flammable dusts and liquids

• vacuuming of magnesium dust or powder

• vacuuming of mixtures of flammable liquids and flammable dust

• Vacuuming of smouldering or hot particles where this could otherwise result in a fire or an explosion

• Vacuuming of carcinogens

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Current information on content materials can be found at: www.kaercher.de/REACH

Only use original accessories and original spare parts. They ensure that the appliance will run safely and fault-free.

Information on accessories and spare parts can be found at www.kaercher.com.

Check the contents for completeness when unpacking. In the event of shipping damage, please notify your dealer.

---

The device is suitable for vacuuming dusts up to dust class M.

---

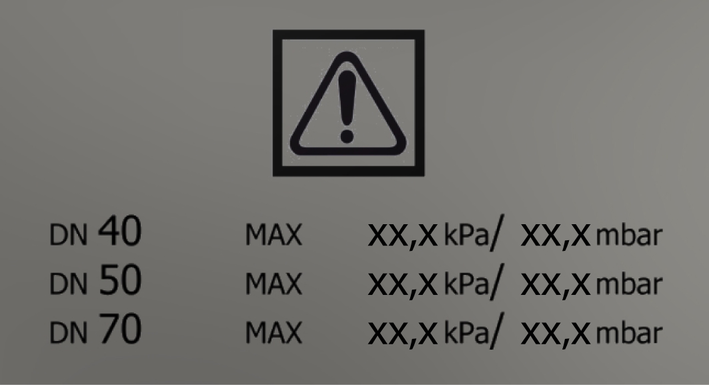

The maximum vacuum value in relation to the hose cross-section is specified on the label. The actual value can be read on the pressure gauge. For the values applicable to this device, see chapter Reading the minimum volumetric flow. If this value is not reached, the filter must be cleaned (see chapter Dedusting the filter) or replaced (see chapter Replacing the filter). The various different hose cross-sections allow adaptation to the various different connection cross-sections of the accessories.

	filter (Order no. 9.990-222.0)
	Dust bag (Order no. 9.989-606.0)

1. Bring the device into the working position.

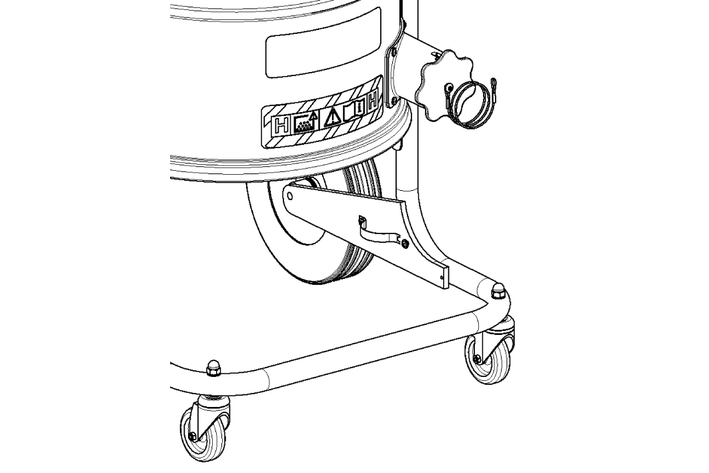

2. Secure the device with the parking brakes.

3. Ensure that the suction head is fitted correctly.

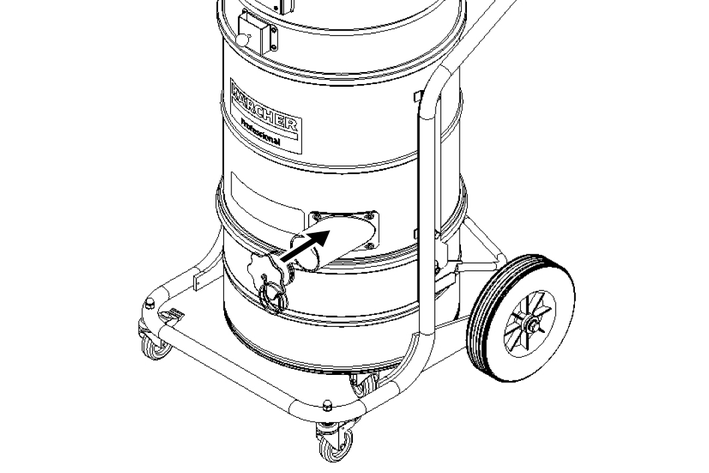

4. Insert the suction hose (not included in the scope of delivery) into the suction connection.

5. Check the filling level in the dirt receptacle (see chapter Check the dirt receptacle filling level).

6. Empty the dirt receptacle if necessary (see chapter Emptying the dirt receptacle).

7. Fit the dust bag before dry vacuuming (see chapter Dry vacuuming).

8. Fit the desired accessory (not included in the scope of delivery) onto the suction hose.

The dirt receptacle must be emptied when filled to the lower edge of the suction hose port on the dirt receptacle. The device does not switch off automatically if the maximum filling level is exceeded.

1. Check the dirt receptacle filling level regularly.

Static charges are discharged through the earthed connection nozzles. This prevents sparking and electric shocks with electrically conductive accessories approved by the manufacturer.

The device is suitable for vacuuming fine dust up to dust class M.

1. Allow the wet filter to dry completely or replace it with a dry filter before using the device for dry vacuuming.

2. Replace the filter if necessary.

1. Secure the device with the parking brakes.

---

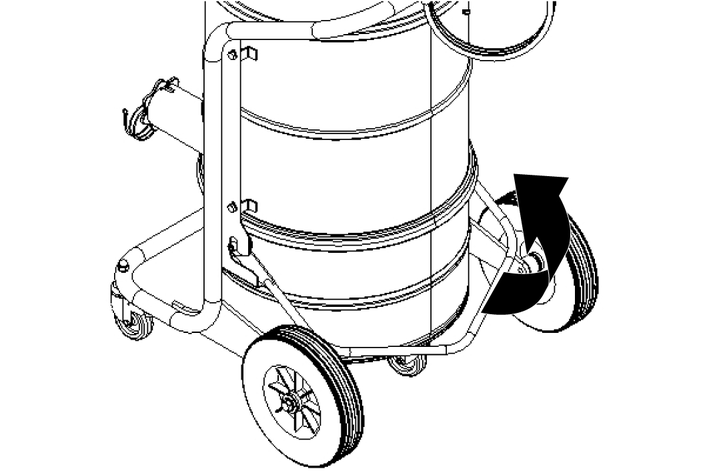

2. Pull the bow handle up.

   The dirt receptacle is unlocked and lowered.

---

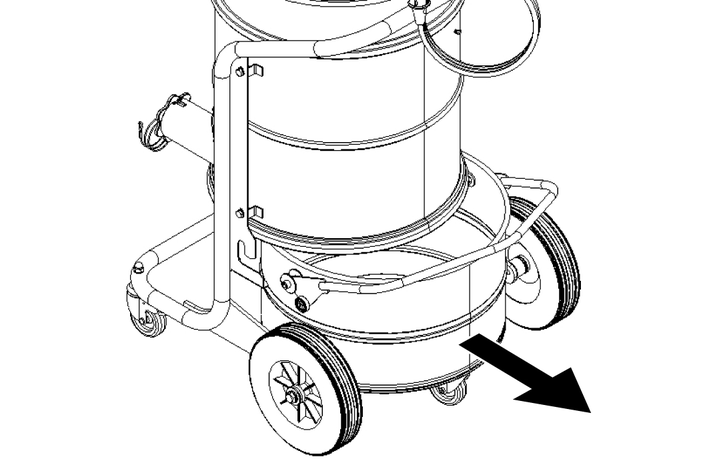

3. Pull the dirt receptacle out of the device by the bow handle.

---

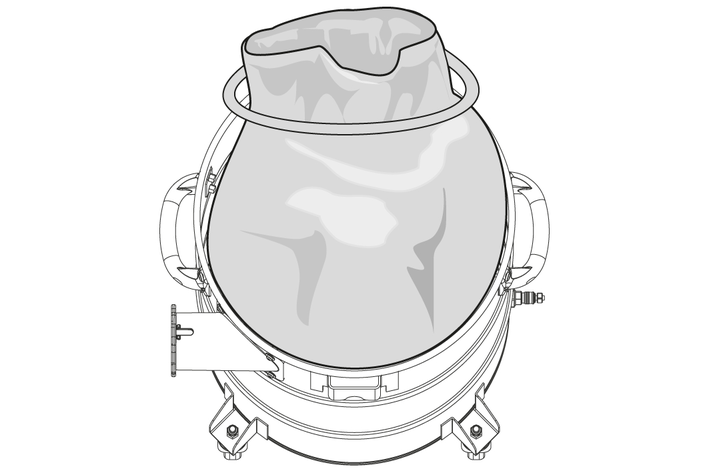

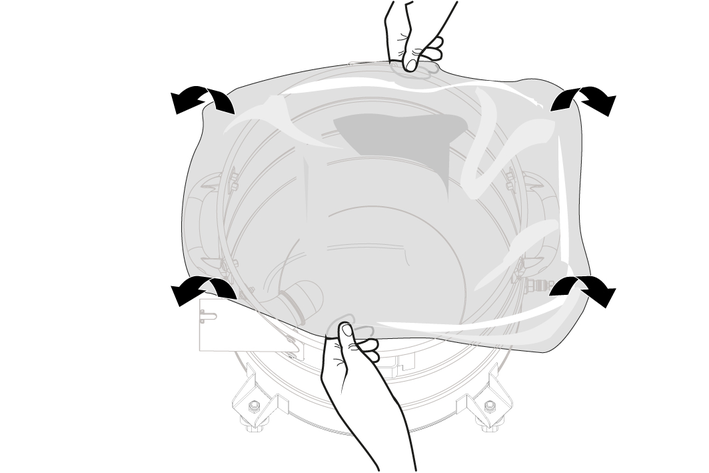

4. Fit the dust bag in the dirt receptacle and carefully position it against the container wall and the container floor.

5. Fold the edge of the dust bag over the edge of the dirt receptacle to the outside.

WARNING

Improper handling when locking the dirt receptacle

Risk of crushing

Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it.Lock the dirt receptacle by operating the bow handle with both hands.

---



ATTENTION

Static charge of the dirt receptacle

Ignition of dusts

Make sure that the grounding on the chassis is in contact with the dirt receptacle.

6. Fit the dirt receptacle and lock it with the bow handle.

1. Secure the device with the parking brakes.

---



2. Pull the bow handle up.

   The dirt receptacle is unlocked and lowered.

---



3. Pull the dirt receptacle out of the device by the bow handle.

---



4. Turn up the dust bag.

5. Seal the dust bag tightly with the cable tie.

6. Remove the dust bag.

7. Dispose of the dust bag in accordance with statutory regulations.

WARNING

Improper handling when locking the dirt receptacle

Risk of crushing

Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it.Lock the dirt receptacle by operating the bow handle with both hands.

---



ATTENTION

Static charge of the dirt receptacle

Ignition of dusts

Make sure that the grounding on the chassis is in contact with the dirt receptacle.

8. Fit the dirt receptacle and lock it with the bow handle.

1. Plug the mains plug into the socket.

2. Switch on the device at the suction turbine power switch.

3. Start vacuuming.

1. Regularly check the filling level in the dirt receptacle, since the device does not switch off automatically.

2. If necessary, empty the dirt receptacle (see chapter Emptying the dirt receptacle).

3. If necessary, clean the filter (see chapter Dedusting the filter) or change/replace the filter (see chapter Replacing the filter).

A pressure gauge showing the vacuum inside the device is mounted on the front of the device. The filter must be cleaned when the maximum vacuum (see table) is reached (see chapter Dedusting the filter). This value depends on the device performance and the suction hose used. If the vacuum is not significantly reduced by dedusting, the filter must be replaced (see chapter Replacing the filter).

The filter must be cleaned if the pressure gauge shows the maximum vacuum (see chapter Reading the minimum volumetric flow).

---



1. Close the inlet opening or the suction hose during the suction process.

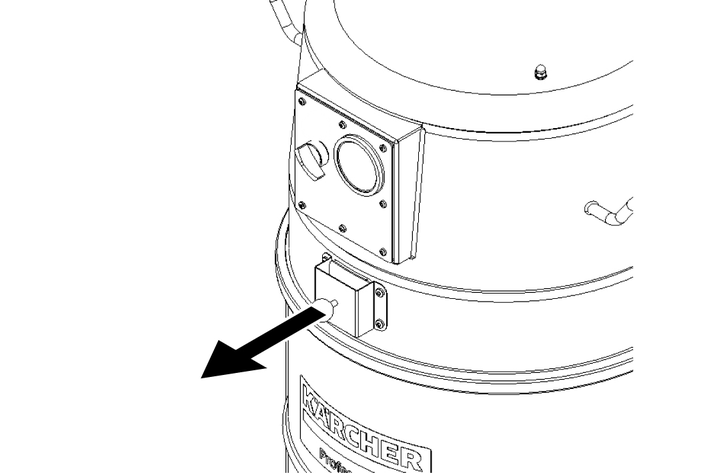

2. Pull the flap of the filter dedusting system 3-4 times and hold it open for 1-2 seconds each time.

1. Switch off the device at the suction turbine power switch.

2. Pull out the mains plug.

The dirt receptacle must be emptied as required and after each use and cleaned inside and out by vacuuming and wiping with a damp cloth.

A vacuum cleaner with the same or better classification must be used for vacuuming the device.

The inlet opening or the suction hose are closed.

1. Switch on the device at the suction turbine power switch.

2. Dedust the filter (see chapter Dedusting the filter).

3. Switch off the device at the suction turbine power switch.

4. Secure the device with the parking brakes.

---



5. Pull the bow handle up.

   The dirt receptacle is unlocked and lowered.

---



6. Pull the dirt receptacle out of the device by the bow handle.

7. Empty the dirt receptacle. To do this, remove the dust bag if necessary (see Removing the dust bag).

WARNING

Improper handling when locking the dirt receptacle

Risk of crushing

Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it.Lock the dirt receptacle by operating the bow handle with both hands.

---



ATTENTION

Static charge of the dirt receptacle

Ignition of dusts

Make sure that the grounding on the chassis is in contact with the dirt receptacle.

8. Fit the dirt receptacle and lock it with the bow handle.

1. Remove the suction hose.

---



2. Insert the sealing plug precisely into the suction connection.

3. Push the sealing plug in all the way to the end stop.

4. Turn the sealing plug to the right until the suction connection is tightly closed.

1. Vacuum the inside and outside of the device and clean with a moist cloth.

   A vacuum cleaner with the same or better classification must be used for vacuuming the device.

2. If necessary, rinse the accessories (not included in the scope of delivery) with water and dry them.

1. Wind the mains cable onto the cable holders.

2. Store the device in a dry room and secure it against unauthorised use.

1. Close the suction connection for dust-free transport (see chapter Closing the suction connection).

2. Release the parking brakes and push the device by the push handle.

3. Grasp the device by the chassis and the push handle for loading.

4. Secure the device against slipping and tipping over when transporting in vehicles.

1. Store the device indoors only.

Dust extraction machines are safety devices for the prevention or elimination of hazards according to the DGUV regulation:

• For servicing performed by the user, the device must be disassembled, cleaned and maintained only to the degree that this is possible without presenting a danger to the maintenance personnel and other persons. Suitable precautionary measures include detoxification before disassembly. Make provisions for local forced ventilation at the location where the device is to be disassembled, for cleaning the maintenance surface and to ensure adequate protection for the personnel.

• The exterior of the device should be detoxified by vacuuming and wiped clean, or treated with sealant before being removed from the hazardous area. All device parts must be regarded as contaminated when they are taken from the hazardous area. Suitable measures must be taken to prevent distribution of the dust.

• All contaminated objects resulting from maintenance and repair work that cannot be satisfactorily cleaned must be correctly disposed of. Such objects must be disposed of in sealed bags in accordance with the applicable regulations for the disposal of this type of waste.

• The suction hose ports are to be closed using the sealing plugs during transport and maintenance of the device.

1. Note that you can carry out simple maintenance and care work yourself.

2. Clean the surface of the device and the interior of the container regularly with a moist cloth.

Have the device regularly inspected according to the respective national accident prevention regulations. Maintenance work as specified by the manufacturer must be performed by a technically qualified person at the specified regular intervals and in accordance with the applicable regulations and safety requirements. Work on electrical components may only be performed by a qualified electrician. Please contact a KÄRCHER branch office if you have any questions.

1. Secure the device with the parking brakes.

2. Switch off the device using the trigger.

3. Pull out the mains plug.

4. Unlock and remove the suction head.

5. Remove the contaminated filter.

6. Immediately after removing the contaminated filter from the device, place it in a bag and seal the bag tightly.

7. Dispose of the contaminated filter according to legal requirements.

8. Check the sealing ring for damage.

9. Remove any dirt deposits from the clean air side.

10. Fit the new filter in reverse order. Make sure that the filter hold-down device is centred in the filter pockets.

11. Fit and lock the suction head.

1. Secure the device with the parking brakes.

---



2. Pull the bow handle up.

   The dirt receptacle is unlocked and lowered.

---



3. Pull the dirt receptacle out of the device by the bow handle.

---



4. Turn up the dust bag.

5. Seal the dust bag tightly with the cable tie.

6. Remove the dust bag.

7. Dispose of the dust bag in accordance with statutory regulations.

---



8. Insert the new dust bag in the dirt receptacle and carefully place it against the container wall and the container floor.

9. Fold the edge of the dust bag over the edge of the dirt receptacle to the outside.

WARNING

Improper handling when locking the dirt receptacle

Risk of crushing

Under no circumstances should you hold your hands between the dirt receptacle and filter ring or allow them to come close to the lifting mechanism while locking it.Lock the dirt receptacle by operating the bow handle with both hands.

---



ATTENTION

Static charge of the dirt receptacle

Ignition of dusts

Make sure that the grounding on the chassis is in contact with the dirt receptacle.

10. Fit the dirt receptacle and lock it with the bow handle.

If the malfunction cannot be corrected, the device must be checked by the Customer Service department.

• Suction turbine does not start up

• Suction power decreases

• Escaping dust when vacuuming

Remedy:

1. Check the socket and the power supply fuse.

2. Check the mains cable and the mains plug of the device.

3. Switch the device on.

Remedy:

1. Remove the blockages from the suction nozzle, the suction pipe or the suction hose.

2. Check that the suction head and the dirt receptacle are correctly seated.

3. Dedust the filter (see chapter Dedusting the filter).

4. Check the seating of the filter and correct if necessary.

5. Replace the filter (see chapter Replacing the filter).

Remedy:

1. Check the seating of the filter and correct if necessary.

2. Dedust the filter (see chapter Dedusting the filter).

3. Replace the filter (see chapter Replacing the filter).

At the end of its service life, the device is to be disposed of in accordance with statutory regulations.

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

Further information can be found at: www.kaercher.com/dealersearch

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

We hereby declare that the product named below complies with the relevant provisions of the directives and regulations listed. This declaration is invalidated by any changes made to the product that are not approved by us.

Product: Dry vacuum cleaner

Type: 9.990-xxx

2006/42/EC (+2009/127/EC)

2014/30/EU

2014/34/EU

2011/65/EU

EN 60335-1

EN 60335-2-69

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN IEC 61000-3-2: 2019

EN 61000-3-3: 2013 + A1: 2019

EN 62233: 2008

EN 60079-0: 2018

EN 60079-31: 2014

EN IEC 63000: 2018

DIN EN 62784

Designation

II 3D Ex tc IIIC T125°C Dc

Documentation supervisor:

A. Haag

Kärcher Industrial Vacuuming GmbH

Robert-Bosch-Straße 4-8

73550 Waldstetten (Germany)

Tel.: +49 7171 94888-0

Fax: +49 7171 94888-528

---

Waldstetten, 24/11/01

The signatories act on behalf of and with the authority of the Executive Board.

Kärcher Industrial Vacuuming GmbH

Robert-Bosch-Straße 4-8

73550 Waldstetten (Germany)

Ph.: +49 7171 94888-0

Fax: +49 7171 94888-528
