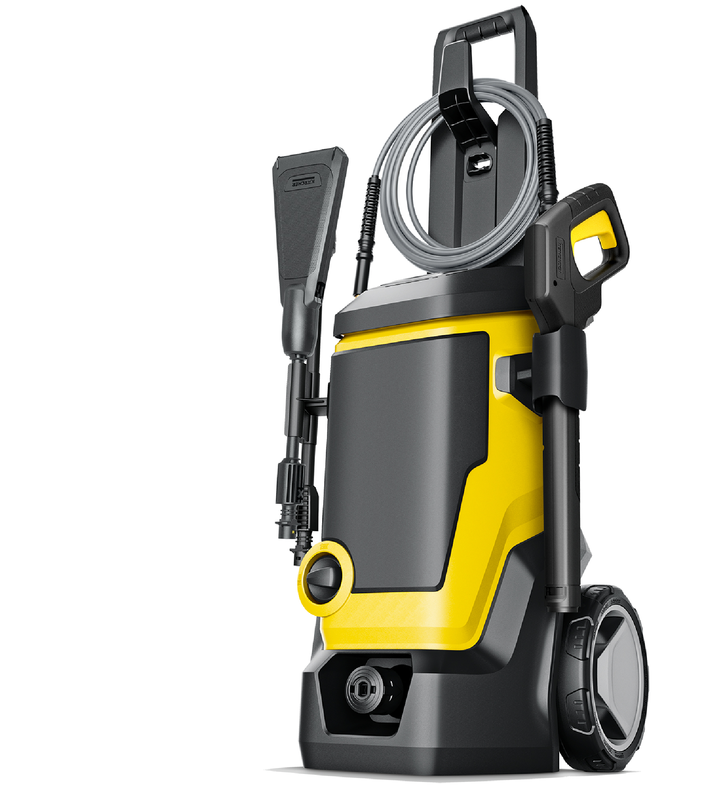

K 7 WCM

With the KÄRCHER Home & Garden app, you benefit from the following advantages when using your device:

Application tips & expert knowledge
Product information, overview of accessories and operating instructions
Support and service contact
Online shop - exclusive offers and much more

Download the KÄRCHER Home & Garden app from your app store and conveniently register your product.

Read this safety chapter and these original instructions before using the device for the first time. Act in accordance with them. Keep the original instructions for future reference or for future owners.

In addition to the notes in the operating instructions, you also need to take into consideration the general safety regulations and accident prevention guidelines applicable by law.
Warnings and information notices attached to the device provide important information for hazard-free operation.

DANGER

Indication of an imminent threat of danger that will lead to severe injuries or even death.

WARNING

Indication of a potentially dangerous situation that may lead to severe injuries or even death.

CAUTION

Indication of a potentially dangerous situation that may lead to minor injuries.

ATTENTION

Indication of a potentially dangerous situation that may lead to damage to property.

DANGER

Operation in explosive atmospheres is prohibited.

DANGER

Never suction solvents, liquids containing solvents or undiluted acids. This includes e.g. petrol, paint thinner or heating oil. The spray mist is highly flammable, explosive and poisonous.

DANGER

Damaged wheels / tyre valves are extremely dangerous. Damaged wheels / tyre valves can be damaged by the high-pressure jet and explode. The first sign of this is discolouration of the tyres. Keep a spray distance of at least 30 cm when cleaning the wheels / tyre valves.

WARNING

Do not use the device if people without the proper protective clothing are in its reach.

WARNING

Do not aim the high-pressure jet at yourself, e.g. to clean clothes or shoes.

WARNING

Do not direct the high-pressure jet at persons, animals, live electrical equipment or at the device itself.

WARNING

Do not spray any objects which contain harmful substances (e.g. asbestos).

WARNING

Check the device and the accessories, such as the high-pressure hose, high-pressure gun and safety devices, to make sure they are in proper safe and reliable condition before each operation. Do not use the device if it is damaged. Replace damaged components immediately.

WARNING

Only use high-pressure hoses, control panels and couplings specified by the manufacturer.

WARNING

Risk of scalding. When disconnecting the supply or high-pressure hose, hot water can leak out of the connections after operation.

CAUTION

According to the applicable regulations, the appliance may never be used with the drinking water network without a system separator. Ensure that the connection to your house water system, with which the high-pressure cleaner is operated, is equipped with a system separator according to EN 12729 type BA.

CAUTION

Water that has flowed through a system separator is no longer classified as drinkable.

CAUTION

Never leave the device unsupervised while it is in operation.

CAUTION

Recoil force from the water stream emerging at the high-pressure nozzle acts on the high-pressure gun. Keep proper footing and hold the high-pressure gun and spray lance firmly.

CAUTION

Accidents or damage due to the device falling over. Before all actions with or on the device, you must make sure that it is stable.

ATTENTION

Do not operate the device at temperatures below 0 °C.

CAUTION

Wear suitable protective clothing and safety goggles to protect yourself from water or dirt backsplash.

CAUTION

Aerosols can be formed when using high-pressure cleaners. Inhaling aerosols can be harmful for your health. Depending on the application, the use of fully shielded nozzles (e.g. surface cleaners) can significantly lower the emission of aqueous aerosols. Depending on the environment to be cleaned, wear a suitable respiratory protective mask of class FFP 2 or comparable to protect yourself from inhaling aerosols if the use of a fully shielded nozzle is not possible.

DANGER

Only connect protection class I devices to properly earthed power sources.

DANGER

Only connect the device to alternating current. The voltage indicated on the type plate must match the voltage of the power source.

DANGER

Only operate the device via a fault current protection switch (maximum 30 mA).

DANGER

Never touch the mains plug and socket with wet hands.

DANGER

The mains plug and coupling of the extension cable must be water tight and may not be placed in water. The coupling may not be on the floor. Use cable drums to ensure that the sockets are at least 60 mm above the floor.

DANGER

All live parts in the work area must be protected against water jets.

WARNING

Only connect the device to an electrical connection which has been set up by a qualified electrician as per IEC 60364‑1.

WARNING

Check that the mains connection cable with mains plug is undamaged each time before using the device. To avoid any possible danger, a damaged mains connection cable must be immediately replaced by the manufacturer, or the authorised customer service department or a qualified electrician.

WARNING

Do not damage the power supply and extension cable by running over it, crushing or yanking it or similar. Protect the power supply cable from heat, oil and sharp edges.

WARNING

Unsuitable electrical extension cables are dangerous. Only use approved and appropriately marked electrical extension cables with a sufficient line cross section when outdoors: 1‑10 m : 1.5 mm², 10‑30 m : 2.5 mm²

CAUTION

Always fully unwind the extension cable from the cable drum.

CAUTION

In case of longer breaks in operation and after use, switch off the device at the main switch / device switch and pull the mains plug.

WARNING

Incorrect use of detergents can cause serious injuries or poisoning.

CAUTION

Keep the detergent out of the reach of children.

CAUTION

Only use the detergents supplied or specified by the manufacturer. The use of other detergents or chemicals can impair the safety of the device.

WARNING

Always pull out the mains plug before all care and maintenance work.

CAUTION

Have repair work and work on electrical components carried out by the authorised customer service only.

ATTENTION

Do not use acetone, undiluted acids or solvents, as they corrode the materials used on the device.

CAUTION

Risk of accidents and injuries. Take into account the weight of the device for transportation and storage. See chapter Technical data in the operating instructions.

DANGER

Risk of asphyxiation. Keep packaging film out of the reach of children.

WARNING

Only use the device for its proper use. Take into account the local conditions and beware of third parties, in particular children, when working with the device.

WARNING

Persons with reduced physical, sensory or mental capabilities and persons lacking experience and knowledge may only use the appliance if they are properly supervised, have been instructed on use of the appliance safely by a person responsible for their safety, and understand the resultant hazards involved.

WARNING

Children must not operate the device.

WARNING

Children must be supervised to prevent them from playing with the appliance.

CAUTION

Safety devices are provided for your own protection. Never modify or bypass safety devices.

WARNING

Danger of injury!

Serious injuries due to missing, modified or ineffective safety devices.

Do not bypass or remove the safety devices and do not render them ineffective. Safety devices are provided for your own protection.

The power switch prevents unintentional operation of the device.

The lock locks the lever of the high-pressure gun and prevents the device from starting unintentionally.

If the lever of the high-pressure gun is released, the pressure switch turns off the pump and the high-pressure jet stops. The pump switches on again when the lever is pressed.

The motor circuit breaker shuts off the device if power consumption it too high.

	Do not aim the high-pressure jet may at persons, animals, live electrical equipment or the device itself. Protect the device against frost.
	The device may not be connected to the public drinking water network.

Use the high-pressure cleaner in private households only.

The high-pressure cleaner is intended for cleaning machines, vehicles, buildings, tools, façades, terraces, garden machines etc. using a high-pressure water jet.

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Cleaning work producing in oily waste water, e.g. washing engines, washing undercarriages etc., may only be performed at washing stations with an oil separator.

Working with detergents may only be performed on watertight surfaces with connection to the waste water sewage system. Do not allow detergent to enter waterways or the soil.

Extraction of water from public waterways is not permitted in some countries.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

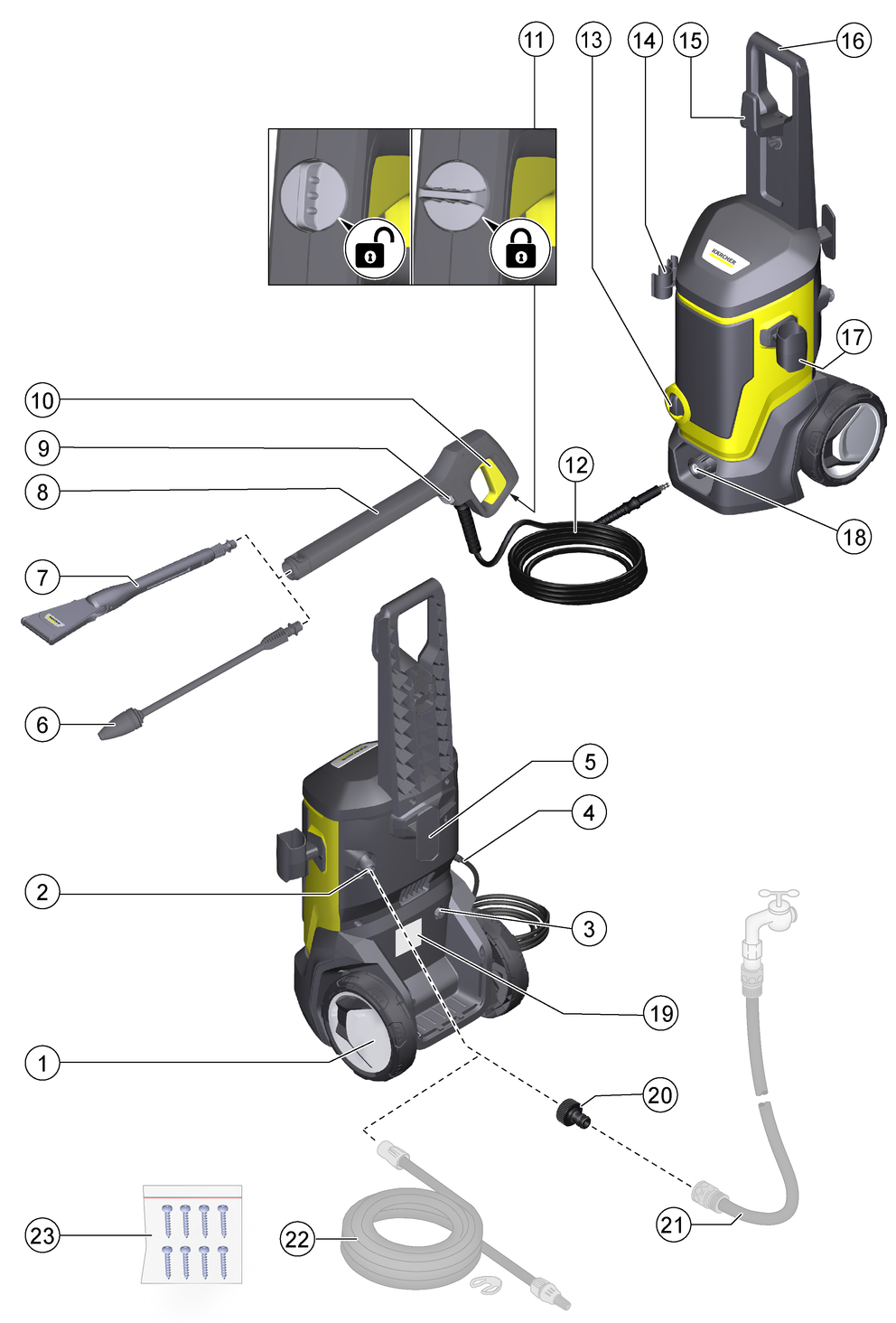

Transport wheel
Water connection with integrated sieve
Detergent suction hose
Mains connection cable with mains plug
Mains connection cable storage compartment
Spray lance dirt blaster for stubborn soiling
Spray lance eco!Booster
High-pressure gun
Release button
High-pressure gun lever
High-pressure gun lock
High-pressure hose
Trigger "0/OFF" / "I/ON"
Storage for spray lance
Storage for high-pressure hose
Transport handle
Storage for high-pressure gun
Quick coupling for high-pressure connection
Type plate
Water connection coupling
**Garden hose (fabric reinforced, diameter at least 1/2 inch (13 mm), length at least 7.5 m, with commercially available quick coupling)
**KÄRCHER suction hose for water supply from open containers (order no. 2.643-100)
Screws

** additionally required

Fit the supplied loose parts onto the device before starting up the device.

Have the included screws and the appropriate screwdriver ready.

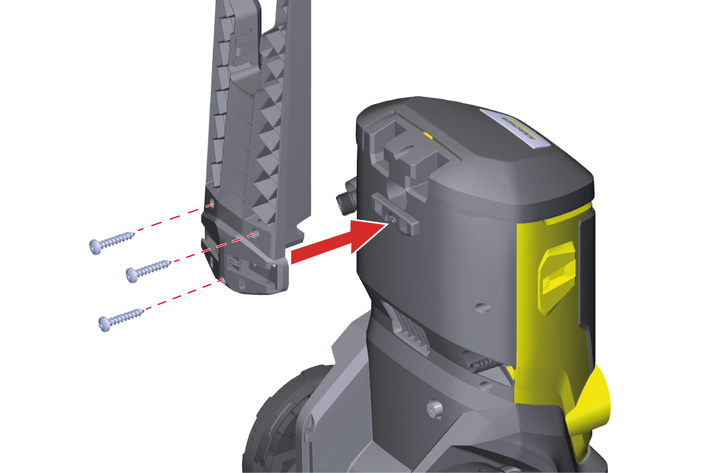

Attach the transport handle.
Secure the transport handle with 3 screws.

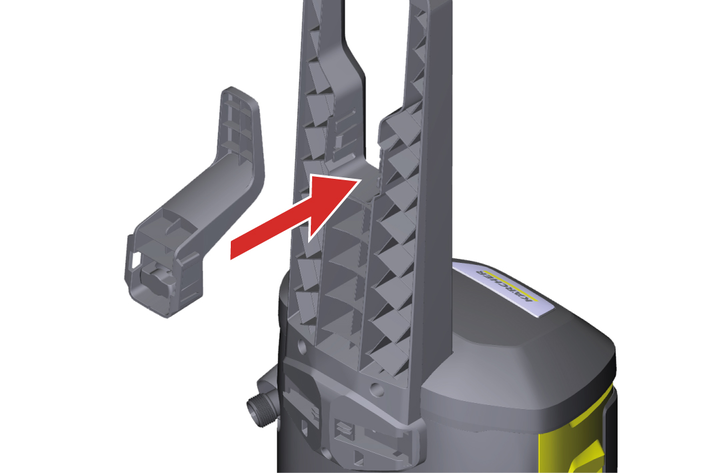

Insert the storage option for the high-pressure hose into the holder at the centre of the transport handle.
The storage option locks into place.

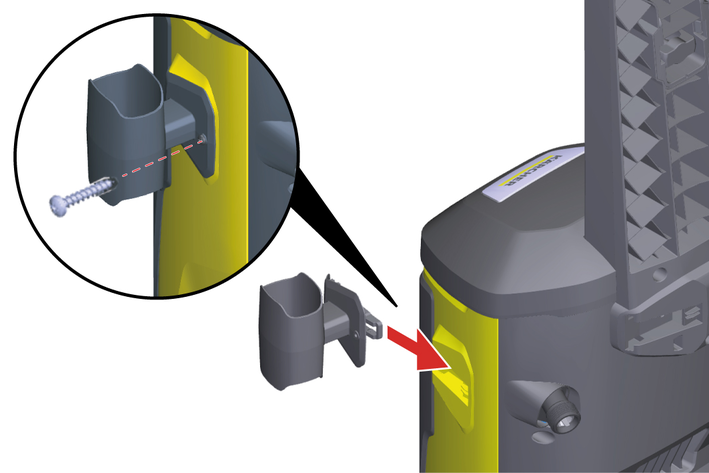

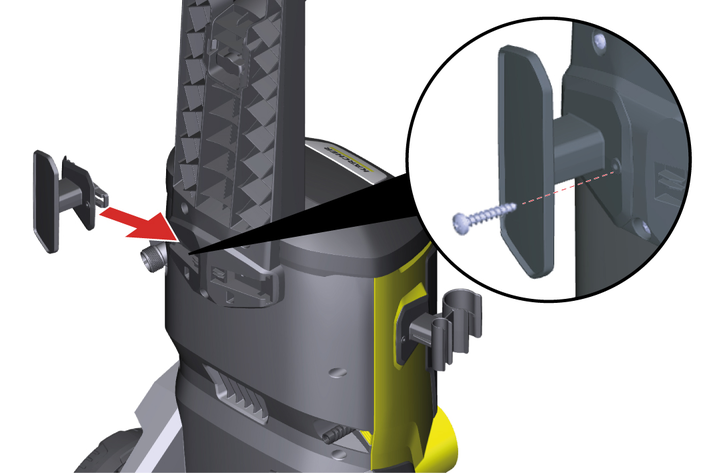

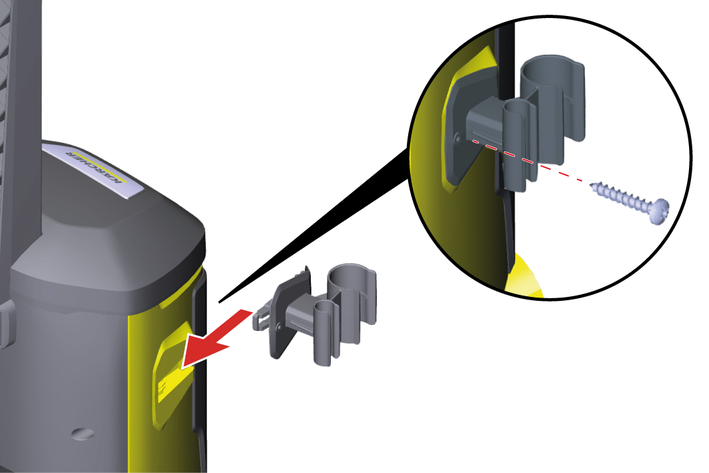

Push in the storage option for the spray lances into the holder on the device.
Hold the storage option in the end position and secure it using a screw.

Push in the storage option for the high-pressure gun into the holder on the device.
Hold the storage option in the end position and secure it using a screw.

Push in the storage option for the mains connection cable into the holder on the transport handle.
Hold the storage option in the end position and secure it using a screw.

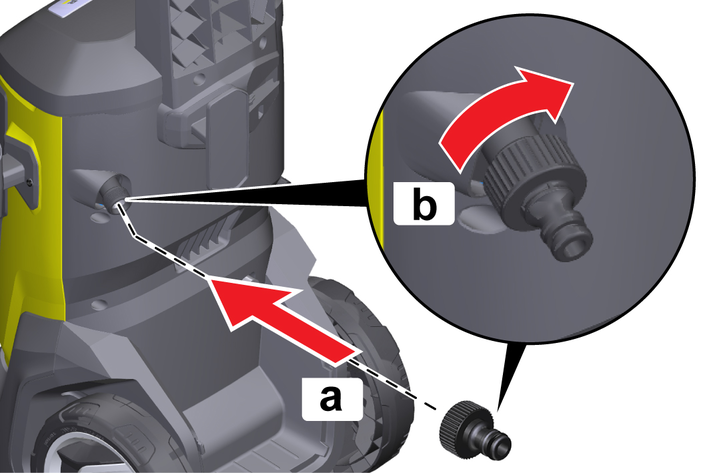

Screw the water connection coupling onto the water connection on the device.

Place the device on a flat and level surface.
Unwind the high-pressure hose and eliminate any loops and twists.

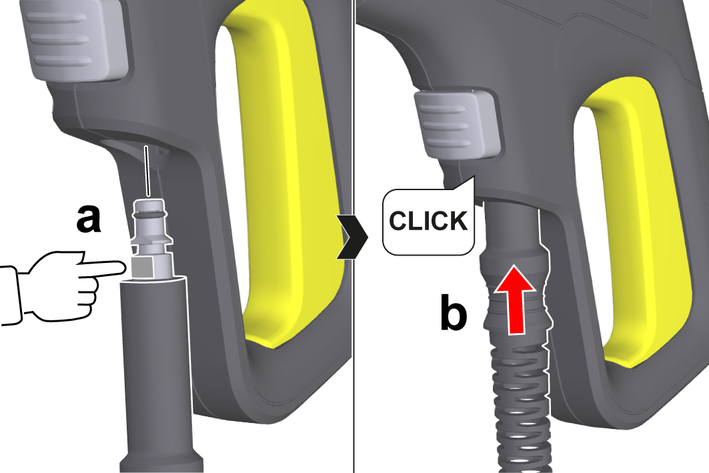

Insert the high-pressure hose into the high-pressure gun until it audibly latches into place.
Note
Take care to ensure the correct alignment of the nipple.

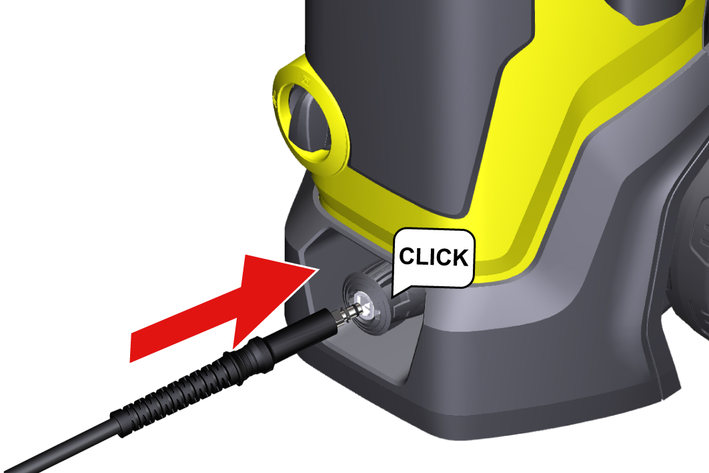

Insert the high-pressure hose into the quick coupling until it audibly latches into place.
Check for a secure connection by pulling on the high-pressure hose.
Plug the mains plug into a mains socket.

For the connection values, see the type plate or chapter Technical data.

Observe the water distribution company regulations.

ATTENTION

Damage through contaminated water

Contamination in the water can damage the pump and the accessories.

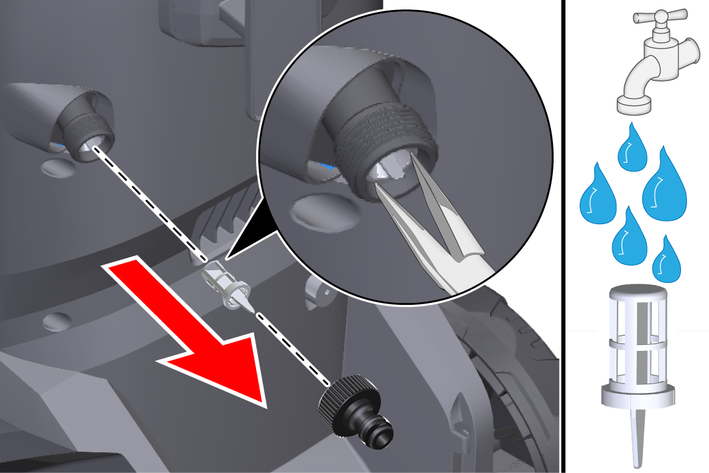

KÄRCHER recommends using the KÄRCHER water filter for protection(special accessory, order number 4.730-059).

ATTENTION

Risk of damage when using hose couplings made of brass with AquaStop function from third-party suppliers.

Damage to the high-pressure pump.

Only use hose couplings with/without AquaStop function from Kärcher, hose couplings without AquaStop function or hose couplings made of plastic with AquaStop function from third-party suppliers.

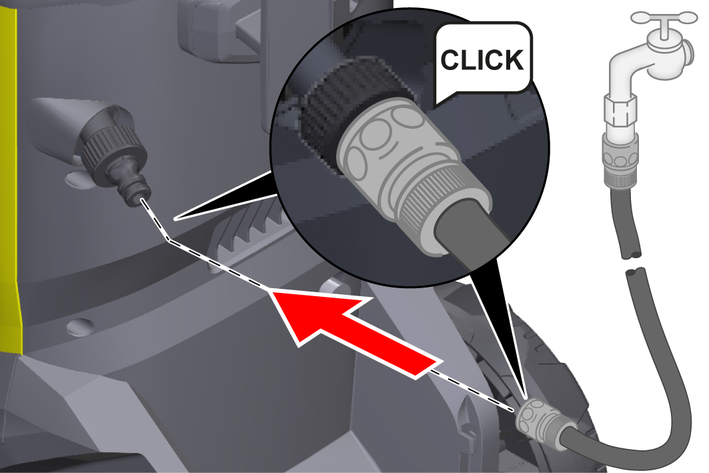

Plug the garden hose onto the water connection coupling.
Connect the garden hose to the water line.
Open the water tap completely.

This high-pressure cleaner with the KÄRCHER suction hose is suitable for sucking in surface water, e.g.from water butts or ponds (for maximum suction height, see Technical data).

Unscrew the coupling on the water connection.

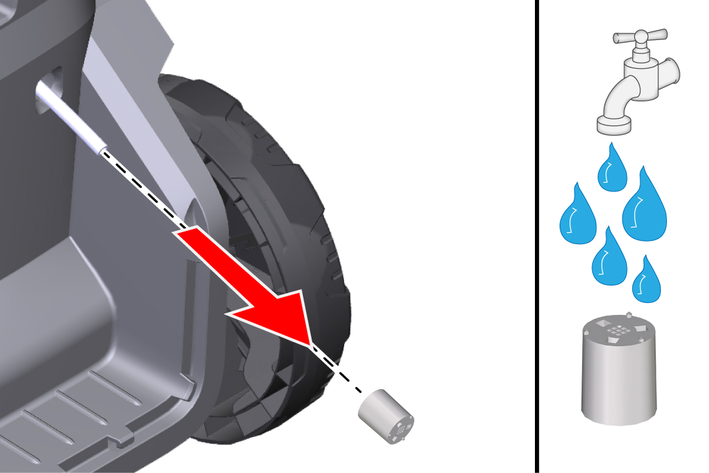

Fill the suction hose with water.
Screw the suction hose onto the water connection of the device and hang it in a water source (e.g. rain barrel).

Switch the device on "I/ON".

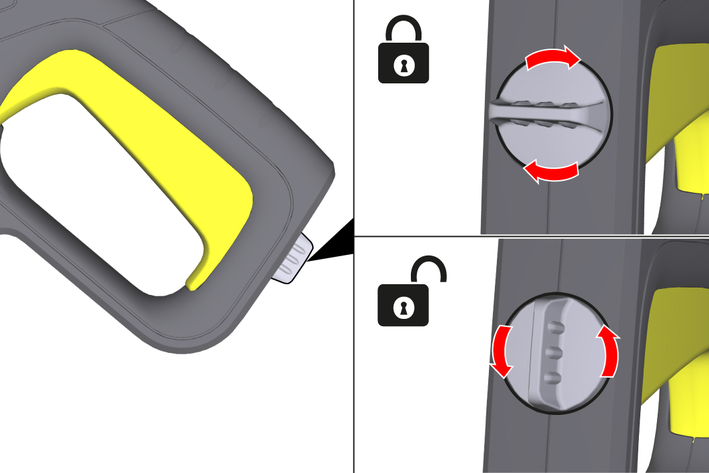

Unlock the lever of the high-pressure gun.
Press the lever of the high-pressure gun.
The device switches on.
Allow the device for run a maximum of 2 minutes until the water escaping from the high-pressure gun is free of air bubbles.
Release the lever of the high-pressure gun.
Lock the lever of the high-pressure gun.

ATTENTION

Risk of damage due to the pump running dry!

Pump damage

Switch off the device if it does not build up pressure within 2 minutes. Proceed according to the instructions in Troubleshooting guide.

ATTENTION

Damage to painted or sensitive surfaces

Surfaces can be damaged when the jet is too close to the surface or an unsuitable spray lance is used.

Maintain a minimum spray distance of 30 cm when cleaning painted surfaces.Do not clean car tyres, paint or sensitive surfaces such as wood with the dirt blaster.

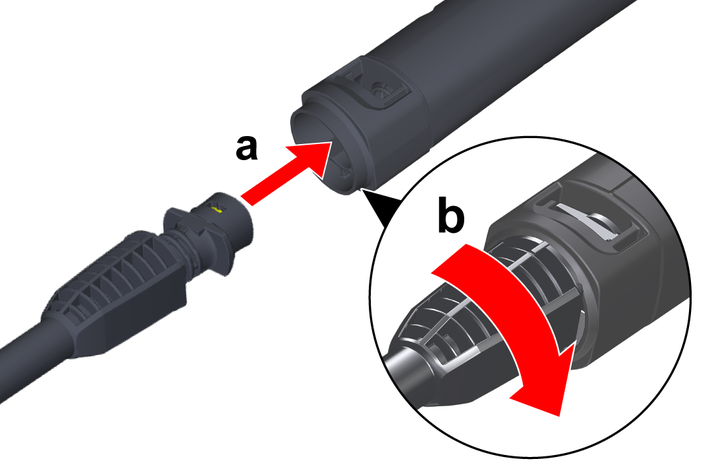

Insert a spray lance into the high-pressure gun and lock it by turning it 90°.
Switch the device on ("I/ON").
Unlock the lever of the high-pressure gun.
Press the lever of the high-pressure gun.
The device switches on.

DANGER

Risk of injury from detergent

Serious damage to health due to improper use of detergents.

Observe the detergent manufacturer's safety data sheet.Wear the prescribed personal protective gear.

Note

KÄRCHER detergents ensure fault-free operation. Ask us for a consultation, request our catalog or our detergent information sheets.

Note

Detergent can only be mixed into the jet at low pressure.

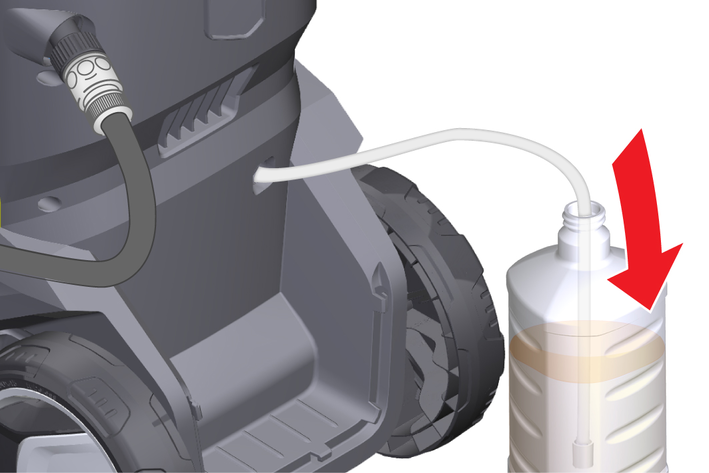

Pull the detergent suction hose out of the casing to the desired length.
Hang the detergent suction hose in a container with detergent solution.
Disconnect the spray lance from the high-pressure gun and work only with the high-pressure gun.
The detergent solution is mixed with the water jet during operation.

Spray the detergent sparingly on the dry surface and let it work for a while (do not let it dry).
Rinse off the loosened dirt with the high-pressure jet.

Flush the device with clear water for approx. 30 seconds.

Release the lever of the high-pressure gun.
The device switches off when the lever is released. The high pressure in the system is retained.
Lock the lever of the high-pressure gun.
Switch the device off "0/OFF" during work breaks longer than 5 minutes.

CAUTION

Danger of injury!

Injuries due to uncontrolled water escaping under high pressure.

Only disconnect the high-pressure hose from the high-pressure gun or the device if there is no pressure in the system.

CAUTION

Risk of scalding!

Scalding due to hot water escaping after operation, when disconnecting the garden hose or high-pressure hose.

Wear suitable protective gloves.After operation, allow the device to cool down before disconnecting the garden hose or high-pressure hose.

Release the lever of the high-pressure gun.
Close the water tap.
Press the lever of the high-pressure gun for 30 seconds.
The pressure in the system is released.
Release the lever of the high-pressure gun.
Lock the lever of the high-pressure gun.
Switch off the device "0/OFF".
Disconnect the device from the water supply.
Pull the mains plug out of the outlet.

CAUTION

Risk of injury or damage due to the weight of the device!

Injury and damage.

Be aware of the weight of the device during transport and storage.

Pull the device via the transport handle.

Secure the device against slipping and tipping over.

CAUTION

Risk of injury or damage due to the weight of the device!

Injury and damage.

Be aware of the weight of the device during transport and storage.

Place the device on a level surface.
Press the disconnect button on the high-pressure gun and disconnect the high-pressure hose from the high-pressure gun.
Disconnect the spray lance from the high-pressure gun.
Stow both spray lances and the high-pressure gun in the appropriate storage options.
Disconnect the high-pressure hose from the device.
Store the high-pressure hose on the device.
Stow the mains connection cable on the device.

Observe the additional notes before storing the device for a longer period of time, see chapter Care and service.

ATTENTION

Risk of damage!

Damage to the device and accessories due to freezing water.

Completely empty the device and accessories after each use.Protect the device and accessories from temperatures below or equal to 0 °C (32 °F).

Disconnect the water supply from the device.
Remove the high-pressure hose from the device.
Switch on the device “I/ON”.
Wait for a maximum of 1 minute until no more water escapes from the high-pressure connection.
Switch off the device "0/OFF".
Store the device and accessories in a frost-protected room.

DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.Remove the mains plug.

The device is maintenance-free, i.e. you do not need to perform any maintenance work.

ATTENTION

Risk of damage due to missing or damaged sieve!

Damage to the high-pressure pump

Do not operate the device without a sieve.Do not clean the sieve with hard, pointed objects.

Clean the sieve in the water connection if necessary.

Unscrew the coupling on the water connection.
Pull out the sieve.
Clean the sieve under running water.
Insert the sieve into the water connection.

Clean the detergent filter before prolonged storage.

Remove the filter from the detergent suction hose.
Clean the filter under running water.

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorized Customer Service.

DANGER

Danger of death!

Fatal injuries due to electric shock when touching live parts.

Do not touch any live parts.Switch off the device.Pull the mains plug out of the mains socket.

Device not running
The device does not start up, the motor buzzes
Device does not reach required pressure
Strong pressure fluctuations
Device leaking
Detergent is not sucked in

Remedy:

Press the lever of the high-pressure gun.
The device switches on.
Check that the voltage specified on the type plate corresponds to the voltage of the power source.
Check the mains connection cable for damage.
If the motor is overloaded and the motor circuit breaker has triggered:
1. Switch off the device "0/OFF".
2. Allow the device to cool down for 1 hour.
3. Switch the device on "I/ON" and resume operation.
Have the device checked by Customer Service if this fault occurs repeatedly.

Cause:

Voltage drop due to a weak mains grid or when using an extension cable

Remedy:

When switching on, first press the lever on the high-pressure gun and then switch on the device "I/ON".

Cause:

The water supply is too low.

Remedy:

Open the water tap fully.
Check the water inlet for an adequate flow rate.
Check the setting at the spray lance.
Check that the maximum suction height is not exceeded.

Cause:

The sieve in the water connection is dirty.

Remedy:

Pull the sieve in the water connection out using flat pliers.
Clean the sieve under running water.

Cause:

Air is in the device.

Remedy:

Vent the device:
1. Switch on the device without a connected spray lance for a maximum of 2 minutes.
2. Press the high-pressure gun and wait until the water escaping from the high-pressure gun is free of air bubbles.
3. Connect the spray lance.

Remedy:

Cleaning the high-pressure nozzle:
1. Remove contamination from the nozzle drill with a needle.
2. Rinse the high-pressure nozzle with water from the front.
Check the water supply volume.

Remedy:

The device leaks a small amount for technical reasons. If the leak is severe, request authorised Customer Service.

Remedy:

Disconnect the spray lance from the high-pressure gun and work only with the high-pressure gun.
Clean the filter on the detergent suction hose.
Check the detergent suction hose for kinks.

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

Further information can be found at: www.kaercher.com/dealersearch

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

UK Delaration of Conformity

We hereby declare that the product named below complies with the relevant provisions of the directives and regulations listed. This declaration is invalidated by any changes made to the product that are not approved by us. The manufacturer shall bear sole responsibility for issuing of this declaration of conformity.

Product: High-pressure cleaner

Type: 1.317-xxx

Directives and Regulations

S.I. 2008/1597 (as amended)

S.I. 2016/1091 (as amended)

S.I. 2012/3032 (as amended)

S.I. 2001/1701 (as amended)

S.I. 2010/2617 (as amended)

(EU) 2019/1781

Designated standards used

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Applied conformity assessment procedure

S.I. 2001/1701 (as amended): Schedule 8

Sound power level dB(A)

K 7 Power (GB), K 7 Premium Power (GB)

Measured: 92

Guaranteed: 94

K 7 WCM (GB)

Measured: 90

Guaranteed: 93

K 7 WCM (CH)

Measured: 88

Guaranteed: 91

Name and address

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: +49 7195 14-0

Fax: +49 7195 14-2212

Winnenden, 2025/11/01

The undersigned act on behalf of and with the authority of the Board of Directors.

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: +49 7195 14-0

Fax: +49 7195 14-2212

EU Delaration of Conformity

Product: High-pressure cleaner

Type: 1.317-xxx

Directives and Regulations

2006/42/EC (+2009/127/EC)

2014/30/EU

2011/65/EU

2000/14/EC

2009/125/EC

(EU) 2019/1781

Harmonised standards used

EN 60335-1

EN 60335-2-79

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 1997 + A1: 2001 + A2: 2008

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

Applied conformity evaluation method

2000/14/EG: Annex V

Sound power level dB(A)

K 7 Power (GB), K 7 Premium Power (GB)

Measured: 92

Guaranteed: 94

K 7 WCM (GB)

Measured: 90

Guaranteed: 93

K 7 WCM (CH)

Measured: 88

Guaranteed: 91

Name and address

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: +49 7195 14-0

Fax: +49 7195 14-2212

Winnenden, 2025/11/01

The undersigned act on behalf of and with the authority of the Board of Directors.

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: +49 7195 14-0

Fax: +49 7195 14-2212

Electrical connection
Voltage	230-240 V
Phase	1 ~
Frequency	50 Hz
Current consumption	12,1 A
Protection type	IPX5
Protection class	I
Power protection (slow-blowing)	13 A
Water connection
Feed pressure (max.)	1,2 MPa
Input temperature (max.)	60 °C
Input amount (min.)	10 l/min
Suction height (max.)	0,5 m
Device performance data
Operating pressure	14,5 MPa
Max. permissible pressure	18 MPa
Water flow rate	8 l/min
Detergent flow rate	0,3 l/min
High-pressure gun recoil force	23 N
Dimensions and weights
Typical operating weight	19 kg
Length	355 mm
Width	369 mm
Amount	946 mm
Values determined in accordance with EN 60335-2-79
Hand-arm vibration value	1,6 m/s²
Uncertainty K	1,0 m/s²
Sound level L_pA	77 dB(A)
Uncertainty K_pA	3 dB(A)
Sound power level L_WA + Uncertainty K_WA	93 dB(A)

2-2-SC-A5-GS-17339

</BackPage>

K 7 WCM

59805340 (11/25)

KÄRCHER Home & Garden App

Safety instructions

Hazard levels

DANGER

WARNING

CAUTION

ATTENTION

Operation

DANGER

DANGER

DANGER

WARNING

WARNING

WARNING

WARNING

WARNING

WARNING

WARNING

CAUTION

CAUTION

CAUTION

CAUTION

CAUTION

ATTENTION

Protective gear

CAUTION

CAUTION

Risk of electric shock

DANGER

DANGER

DANGER

DANGER

DANGER

DANGER

WARNING

WARNING

WARNING

WARNING

CAUTION

CAUTION

Operation with detergent

WARNING

CAUTION

CAUTION

Care and service

WARNING

CAUTION

ATTENTION

Transportation

CAUTION

General safety instructions

DANGER

WARNING

WARNING

WARNING

WARNING

CAUTION

Safety devices

WARNING

Power switch

High-pressure gun lock

Auto-stop function

Motor circuit breaker

Symbols on the device

Intended use

Environmental protection

Accessories and spare parts

Scope of delivery

Device description

Installation

Mounting the transport handle

Mounting the storage option for the high-pressure hose

Mounting the storage option for spray lances

Mounting the storage option for the high-pressure gun

Mounting the storage option for the mains connection cable

Installing the water connection coupling

Initial startup

Note
