      PW 30/1

      59699570 (08/25)

      General instructions

      Read the original instructions before using the unit for the first time and act in accordance with it. Keep this document for future reference or for future owners.

      • Read the operating instructions for the Puzzi washing vacuum before using it for the first time.

      • Read the safety instructions no. 59560770 before using the unit for the first time.

      • If the operating instructions and safety instructions are not observed, the device can be damaged and dangers could arise for users and other persons.

      • Notify the dealer immediately in the case of shipping damage.

      • Check the package contents when unpacking for missing accessories or for damage.

      Environmental protection

      The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

      Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

      Notes on the content materials (REACH)

      Current information on content materials can be found at: www.kaercher.de/REACH

      Intended use

      ATTENTION

      Damage to the device

      Short-circuit due to high levels of humidity

      Only use and store the device indoors.

      • The professional wash head PW 30/1 is a spray extraction device. It can be used with Puzzi units with a built-in socket and is suitable for removing heavy soiling from carpets.

      • This device is suitable for commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies.

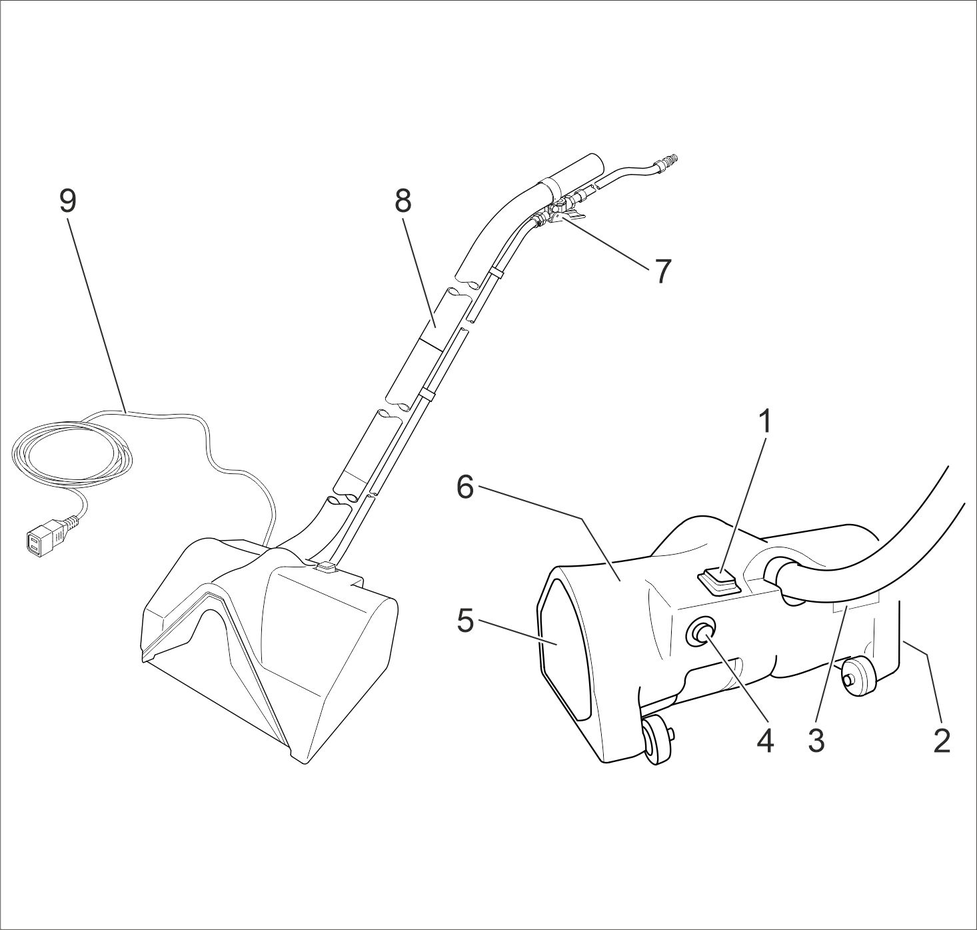

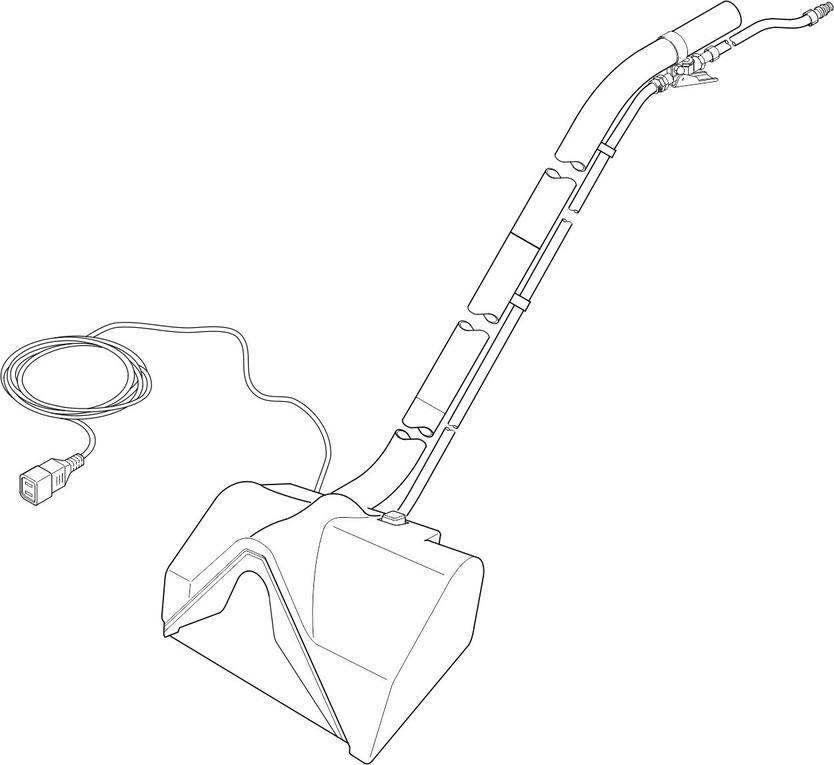

      Description of the device

      1. Power switch
      2. Retaining plate
      3. Type plate
      4. Fuse switch
      5. Cover
      6. Casing
      7. Valve handle
      8. Suction pipe
      9. Mains cable

      Safety instructions

      DANGER

      Never spray or vacuum fluids, flammable gases, explosive dusts as well as undiluted acids and solvents. These include petrol, paint thinners or heating oil, which can form explosive vapours or mixtures through suction air turbulence, also acetone, undiluted acids and solvents because these attack the materials used in the machine.

      DANGER

      Risk of electric shock. Never cross the mains connection or the extension cable with the rotating brushes /discs of the cleaning head.

      WARNING

      Prior to cleaning, maintenance and replacement of parts, the device needs to be switched off and the mains plug or battery pack removed. Switch the device off before changing over to another function.

      WARNING

      Check that the mains connection cable with mains plug is undamaged each time before using the device. To avoid any possible danger, a damaged mains connection cable must be immediately replaced by the manufacturer, or the authorised customer service department or a qualified electrician.

      WARNING

      Do not damage the power supply and extension cable by running over it, crushing or yanking it or similar. Protect the power supply cable from heat, oil and sharp edges.

      WARNING

      Only people who have been instructed on how to use the device, or have proven their ability to operate it, and have been explicitly instructed to use it, must use the device.

      CAUTION

      Repairs may only be carried out by approved customer service sites or staff qualified in this area who are familiar with all relevant safety instructions.

      Function

      With the PW 30/1, in addition to spray extraction, the dirt is brushed out of the carpet by a high-speed brush. This enables thorough cleaning even of heavily soiled carpets.

      Initial startup

      1. Make the Puzzi washing vacuum ready for operation.

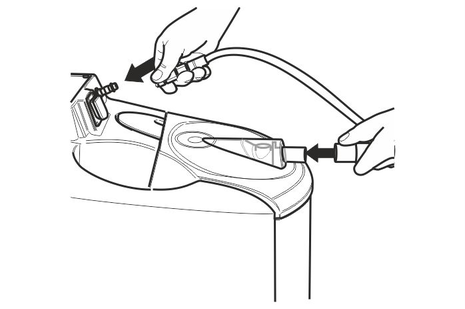

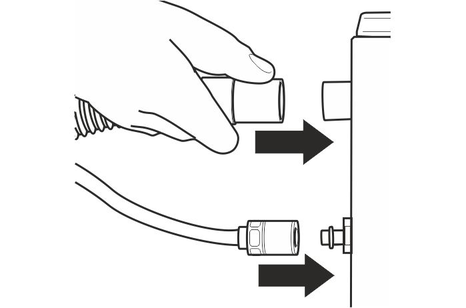

      2. Connect spray/suction hose on the unit.

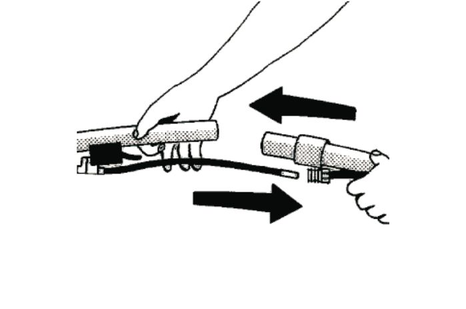

      3. Connect PW 30/1 with spray/suction hose. Make sure that the couplings of the pressure hose engage.

      Using the additional socket

      1. Open the protective cover of the additional socket.

      2. Plug the unit plug of the PW 30/1 into the additional socket of the Puzzi washing vacuum.

      3. Put PW 30/1 into operation.

      Operation

      Switching on the device

      1. Put the Puzzi washing vacuum into operation.

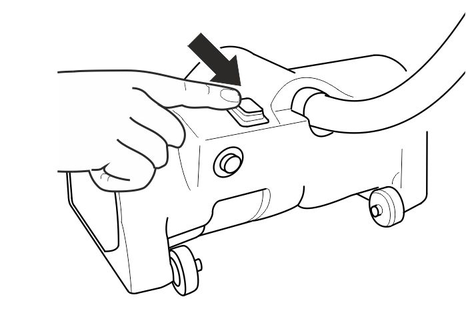

      2. Start the brush drive on the power switch of the PW 30/1.

        Note

        When the brush is blocked, the brush drive switches off. For remedy see troubleshooting guide.

      Cleaning

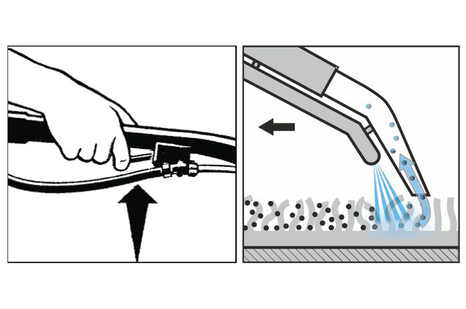

      1. Operate the valve handle. This is used to spray on the detergent solution. The waste water is immediately vacuumed back in via the suction nozzle.

      2. For cleaning, pull PW 30/1 backwards over the carpet in slightly overlapping paths. Start in such a way that areas that have already been cleaned do not have to be walked on again.

      3. Release the valve handle when moving forward (idle stroke).

      Switching off the device

      1. Switch off the brush drive at the power switch.

      2. Set the Puzzi washing vacuum out of operation.

      Transport

      CAUTION

      Failure to observe the weight

      Risk of injury and damage

      Be aware of the weight of the device during transportation.

      1. Pull the device behind you with the suction pipe when transporting it over longer distances.

      2. Carry the device by the casing and suction pipe.

      3. When transporting the device in vehicles, secure it to prevent it from slipping or overturning in accordance with the respective valid guidelines.

      Storage

      CAUTION

      Failure to observe the weight

      Risk of injury and damage

      Be aware of the weight of the device during storage.

      The device may only be stored indoors.

      Care and maintenance

      DANGER

      Danger of electric shock

      Injuries due to touching live parts

      Switch off the device.Unplug the unit.

      Maintenance intervals

      Each time after use

      1. Rinse PW 30/1 with clear water.

      2. Clean the roller brush of lint and dirt.

      3. Check the spray pattern of the nozzle mouthpiece; if the spray pattern is uneven, clean the nozzle and mouthpiece.

      4. Clean the suction hose and suction nozzles when the suction performance decreases.

      Half-yearly

      1. Check toothed belt wear and tension, replace toothed belt if necessary.

      2. Check brush wear, replace brush if necessary.

      Maintenance work

      Replacing the roller brush

      1. Release 5 screws and remove the cover.

      2. Remove the toothed belt.

      3. Unscrew the screw on the front of the brush.

      4. Dismantle the retaining plate on the opposite side by loosening 3 screws and remove the brush.

      5. Installation of the brush is performed in the reverse sequence.

      Troubleshooting guide

      DANGER

      Danger of electric shock

      Injuries due to touching live parts

      Switch off the device.Unplug the unit.

      • Brush is blockedWhen the brush is blocked, the brush motor is switched off.

      Brush is blocked

      Note

      When the brush is blocked, the brush motor is switched off.

      Remedy:

      1. Check brush for dirt and remove any blocking objects if necessary.

      2. Unscrew the protective cover and press the fuse switch using a screwdriver. Screw the protective cover back in.

      Customer Service department

      If the malfunction cannot be corrected, the device must be checked by the Customer Service department.

      • Brush is blockedWhen the brush is blocked, the brush motor is switched off.

      Brush is blocked

      Note

      When the brush is blocked, the brush motor is switched off.

      Remedy:

      1. Check brush for dirt and remove any blocking objects if necessary.

      2. Unscrew the protective cover and press the fuse switch using a screwdriver. Screw the protective cover back in.

      Warranty

      The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

      Further information can be found at: www.kaercher.com/dealersearch

      Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

      Accessories and spare parts

      Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

      Information on accessories and spare parts can be found at www.kaercher.com.

      Declaration of Conformity

      EU Declaration of Conformity

      We hereby declare that the product named below complies with the relevant provisions of the directives and regulations listed. This declaration is invalidated by any changes made to the product that are not approved by us. The manufacturer shall bear sole responsibility for issuing of this declaration of conformity.

      Product: Spray extraction device

      Type: 1.913-xxx

      Directives and Regulations

      2006/42/EC (+2009/127/EC)

      2011/65/EU

      2014/30/EU

      Harmonised standards used

      EN IEC 63000: 2018

      EN 55014-1: 2017 + A11: 2020

      EN 55014-2: 2015

      EN 60335-1

      EN 60335-2-68

      EN 61000-3-2: 2014

      EN 61000-3-3: 2013

      EN 62233: 2008

      National standards used

      -

      Name and address

      Documentation supervisor:

      S. Reiser

      Alfred Kärcher SE & Co. KG

      Alfred-Kärcher-Str. 28 - 40

      71364 Winnenden (Germany)

      Tel.: +49 7195 14-0

      Fax: +49 7195 14-2212

      Winnenden, 2023/10/18

      The undersigned act on behalf of and with the authority of the Board of Directors.

      Alfred Kärcher SE & Co. KG

      Alfred-Kärcher-Str. 28 - 40

      71364 Winnenden (Germany)

      Ph.: +49 7195 14-0

      Fax: +49 7195 14-2212

      Declaration of Conformity (UK)

      We hereby declare that the product named below complies with the relevant provisions of the directives and regulations listed. This declaration is invalidated by any changes made to the product that are not approved by us. The manufacturer shall bear sole responsibility for issuing of this declaration of conformity.

      Product: Spray extraction device

      Type: 1.913-xxx

      Directives and Regulations

      S.I. 2008/1597 (as amended)

      S.I. 2012/3032 (as amended)

      S.I. 2016/1091 (as amended)

      Designated standards used

      EN IEC 63000: 2018

      EN 55014-1: 2017 + A11: 2020

      EN 55014-2: 2015

      EN 60335-1

      EN 60335-2-68

      EN 61000-3-2: 2014

      EN 61000-3-3: 2013

      EN 62233: 2008

      National standards used

      -

      Name and address

      Documentation supervisor:

      S. Reiser

      Alfred Kärcher SE & Co. KG

      Alfred-Kärcher-Str. 28 - 40

      71364 Winnenden (Germany)

      Tel.: +49 7195 14-0

      Fax: +49 7195 14-2212

      Winnenden, 2023/10/18

      The undersigned act on behalf of and with the authority of the Board of Directors.

      Alfred Kärcher SE & Co. KG

      Alfred-Kärcher-Str. 28 - 40

      71364 Winnenden (Germany)

      Ph.: +49 7195 14-0

      Fax: +49 7195 14-2212

      Technical data

      • PW 30/1 (1.913-102.0)

      • PW 30/1 (1.913-103.0)

      PW 30/1 (1.913-102.0)

      Electrical connection
      Mains voltage
      220-240 V
      Phase
      1 ~
      Power frequency
      50-60 Hz
      Protection type
      IPX4
      Protection class
      II
      Power
      60 W
      Device performance data
      Spray pressure (max.)
      0,4 MPa
      Cleaning solution temperature (max.)
      50 °C
      Brush speed (on carpet)
      1800 1/min
      Casing material
      Plastic
      Dimensions and weights
      Typical operating weight
      5,7 kg
      Working width of the brush
      285 mm
      Working width of the nozzle
      315 mm
      Brush Diameter
      70 mm
      Casing height
      180 mm
      Handle height
      835 mm
      Environmental conditions
      Ambient temperature (max.)
      +40 °C
      Determined values in acc. with EN 60335-2-68
      Sound level LpA
      59 dB(A)
      Uncertainty KpA
      2 dB(A)
      Hand-arm vibration value
      <2,5 m/s2
      Uncertainty K
      0,2 m/s2
      Mains cable
      Power cord type
      H05VV-F 2x1,0 mm2
      Part number (EU)
      6.649-691.0
      Cable length
      4,0 m

      PW 30/1 (1.913-103.0)

      Electrical connection
      Mains voltage
      220-240 V
      Phase
      1 ~
      Power frequency
      50-60 Hz
      Protection type
      IPX4
      Protection class
      II
      Power
      60 W
      Device performance data
      Spray pressure (max.)
      0,4 MPa
      Cleaning solution temperature (max.)
      50 °C
      Brush speed (on carpet)
      1800 1/min
      Casing material
      Plastic
      Dimensions and weights
      Typical operating weight
      5,9 kg
      Working width of the brush
      285 mm
      Working width of the nozzle
      315 mm
      Brush Diameter
      70 mm
      Casing height
      180 mm
      Handle height
      835 mm
      Environmental conditions
      Ambient temperature (max.)
      +40 °C
      Determined values in acc. with EN 60335-2-68
      Sound level LpA
      59 dB(A)
      Uncertainty KpA
      2 dB(A)
      Hand-arm vibration value
      <2,5 m/s2
      Uncertainty K
      0,2 m/s2
      Mains cable
      Power cord type
      H05VV-F 2x1,0 mm2
      Part number (EU)
      6.649-692.0
      Cable length
      7,0 m
