      2.644-592.0
      Operating manual, except for use in Canada or USA

      00842270 (03/26)

      MCM NG

      General notes

      Before installation, read these operating instructions and the safety instructions, the installation instructions and the operating instructions and safety instructions for the machine. Proceed accordingly.

      Keep these operating instructions, safety instructions and installation instructions for future reference or for future owners.

      Installation, service and maintenance work may only be performed by suitably qualified and specially trained personnel.

      Radio frequencies (Brazil only)

      Note

      This device operates on a secondary basis, i.e. it cannot claim protection against harmful interference, even from stations of the same type. It cannot cause interference with systems that operate on a primary basis.

      Safety instructions

      Hazard levels

      DANGER

      Indication of an imminent threat of danger that will lead to severe injuries or even death.

      WARNING

      Indication of a potentially dangerous situation that may lead to severe injuries or even death.

      CAUTION

      Indication of a potentially dangerous situation that may lead to minor injuries.

      ATTENTION

      Indication of a potentially dangerous situation that may lead to damage to property.

      General safety instructions

      DANGER

      Risk of asphyxiation. Keep packaging film out of the reach of children.

      WARNING

      Only use the device for its proper use. Take into account the local conditions and beware of third parties, in particular children, when working with the device.

      WARNING

      The device is not intended for use by persons with restricted physical, sensory or mental abilities or those lacking in experience and / or lacking in knowledge.

      WARNING

      Only people who have been instructed on how to use the device, or have proven their ability to operate it, and have been explicitly instructed to use it, must use the device.

      WARNING

      Children must not operate the device.

      WARNING

      Children must be supervised to prevent them from playing with the appliance.

      CAUTION

      Safety devices are provided for your own protection. Never modify or bypass safety devices.

      ATTENTION

      The service interface is to be used by authorized Kärcher service technicians, only.

      Safety instructions

      ATTENTION

      Risk of damage!

      Improper installation of the attachment kit may result in damage to and malfunction of the device / machine / vehicle and the attachment kit.

      For safety reasons and to preserve warranty and guarantee claims, only have the attachment kit installed by Kärcher Service.

      ATTENTION

      Risk of damage due to electrostatic discharge (ESD)!

      Electrostatic discharge (ESD) can damage electronic components.

      Take suitable measures to discharge the electrostatic charge before all work on the device electronics.

      ATTENTION

      Risk of damage due to sharp-edged objects and soiling!

      Sharp-edged or dirty objects can cause damage such as scratches, nicks and dents when they come into contact with components. Dirty tools, rags and work surfaces can cause irreversible staining and discolouration.

      Use only suitable, undamaged and clean tools and equipment, and take care when working. Place components and devices only on clean, padded surfaces.

      ATTENTION

      Risk of damage due to improperly installed cables and hoses!

      Improperly installed lines and hoses can cause damage, malfunctions and failures of parts or device / machine / vehicle.

      Do not kink lines and hoses and do not subject them to tension, compression or torsion.Ensure that the lines and hoses are routed so that they are free from chafing and at a sufficient distance from hot components, and do not run them over corners or edges or over sharp or pointed parts.Do not fall below the smallest permissible bending radii.If necessary, fasten the lines and hoses with suitable means, do not restrict the required degrees of freedom.Lay and secure cables and hoses so that they are not crushed or compressed and do not come into contact with rotating parts such as wheels, rollers, rollers, brushes, etc.

      Intended use

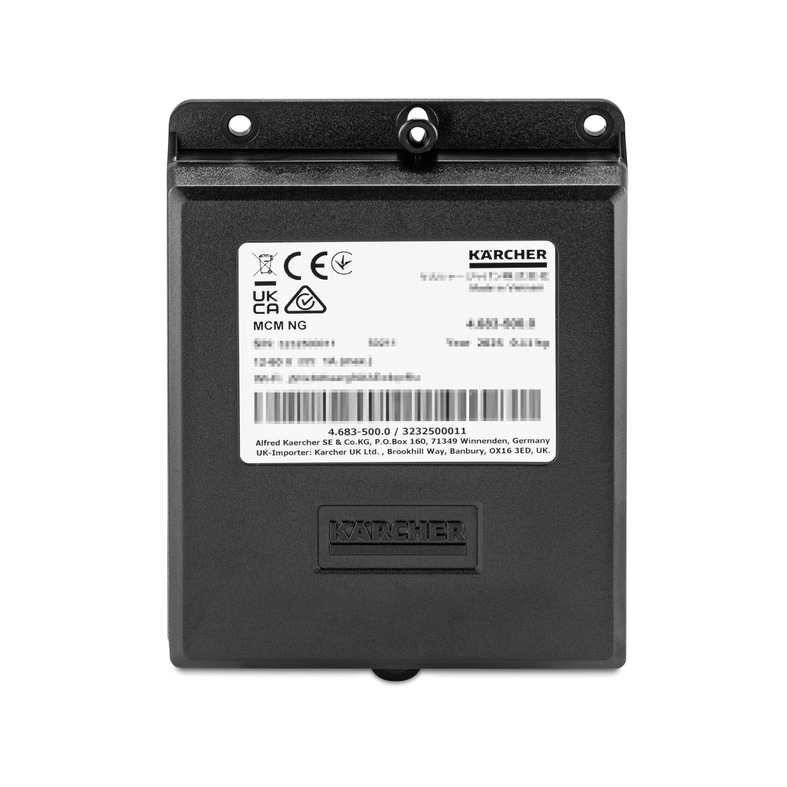

      The MCM NG (Machine Connect Module Next Generation) can be used to transfer data to and from the machine

      • for remote diagnosis

      • for remote maintenance

      • about their use

      Data can be transferred via mobile phone networks or Wi-Fi.

      The customer can object to the data transfer.

      These installation instructions describe the installation and initial startup of the MCM NG in various machines.

      These installation instructions apply to the attachment kit:

      • 2.644-592.0

      Installation

      Detailed installation instructions

      Note

      Call up the detailed installation instructions online before installation and initial startup.

      Proceed accordingly.

      https://kaer.ch/er/bta/5981572

      Minimum distance between MCM NG and machine operator (Japan only)

      Note

      Attach the MCM NG to the machine so that it is at least 20 cm away from the machine operator.

      Troubleshooting guide

      In case of questions or malfunctions, please contact the following e-mail address: info.em@karcher.com

      EU Declaration of Conformity

      Alfred Kärcher GmbH & Co. KG hereby declares that the radio device type Retrofit kit MCM NG complies with the 2014/53/EU directive. The full text of the EU Declaration of Conformity can be found at .

      https://kaer.ch/er/bta/6004019

      Product
      Transmission type
      Frequency
      (MHz)
      Power
      max. EIRP (max. mW)
      MCM
      NG
      Wi-Fi
      2412–2472
      		19
      Product
      Transmission type
      Frequency
      (MHz)
      Power
      max. EIRP (max. mW)
      MCM
      NG
      Cellular
      Band 1
      1920–1980
      275
      Band 2
      1850–1910
      275
      Band 3
      1710–1785
      275
      Band 4
      1710–1755
      275
      Band 5
      824–849
      275
      Band 7
      2500–2570
      275
      Band 8
      880–915
      275
      Band 12
      699–716
      275
      Band 13
      777–787
      275
      Band 18
      815–830
      275
      Band 19
      830–845
      275
      Band 20
      832–862
      275
      Band 25
      1850–1915
      275
      Band 26
      814–849
      275
      Band 28
      703–748
      275
      Band 34
      2010–2025
      275
      Band 38
      2570–2620
      275
      Band 39
      1880–1920
      275
      Band 40
      2300–2400
      275
      Band 41
      2496–2690
      275
      Band 66
      1710–1780
      275

      Technical data



      Device data
      Input voltage range
      12...60 V
      Maximum current draw
      1 A
      Network technology
      Mobile network
      Wi-Fi
      Dimensions and weights
      Weight
      0.11
      0.24 kg
      lbs
      Length x width x height
      122x88x23.3
      4.8x3.46x0.92 mm
      in
      Ambient conditions
      Permissible temperature range
      -10...70
      14...158 °C
      °F
